首 页 > 合金一体成型电感 > > MDA HT(车用)

合金一体成型电感

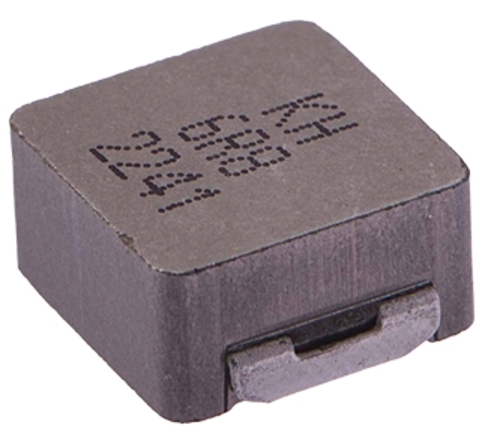

MDA HT(车用)

FEATURES

•Low loss realized with low DCR.

•Ultra low buzz noise, due to composite construc on .

•100% Lead(Pb)-Free and RoHS compliant.

•High performance (Isat) realized by metal dust core

•AEC-Q200 qualified.

•Operating temperature:-55°C to +155°C


APPLICATION

•Headlamps, tail lamps and interior lighting

•HVAC

•Doors, window lift and seat control

•Audio subsystem

•In-Vehicle Infotainment and navigation



MDA HT
产品清单
产品图系列号尺寸(mm)

电感值(μH)

温升电流(A)

饱和电流(A)

直流电阻(mΩ)文件下载

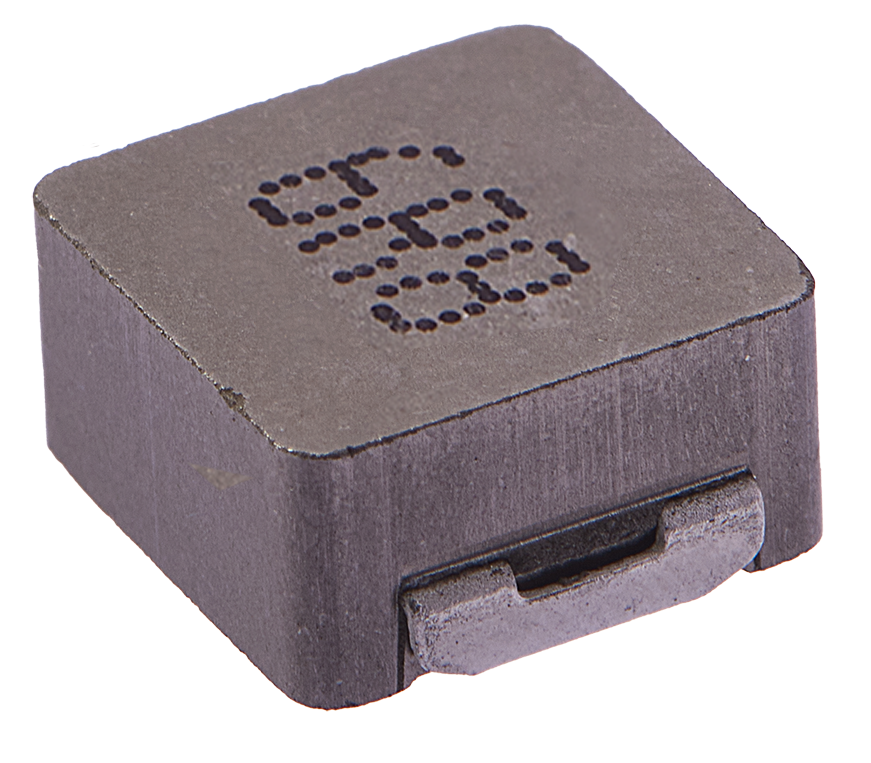

1670378373558576.pngMDA4020HT4.3*4.2*1.90.1~10.03.1~19.03.3~35.01.9~126下载

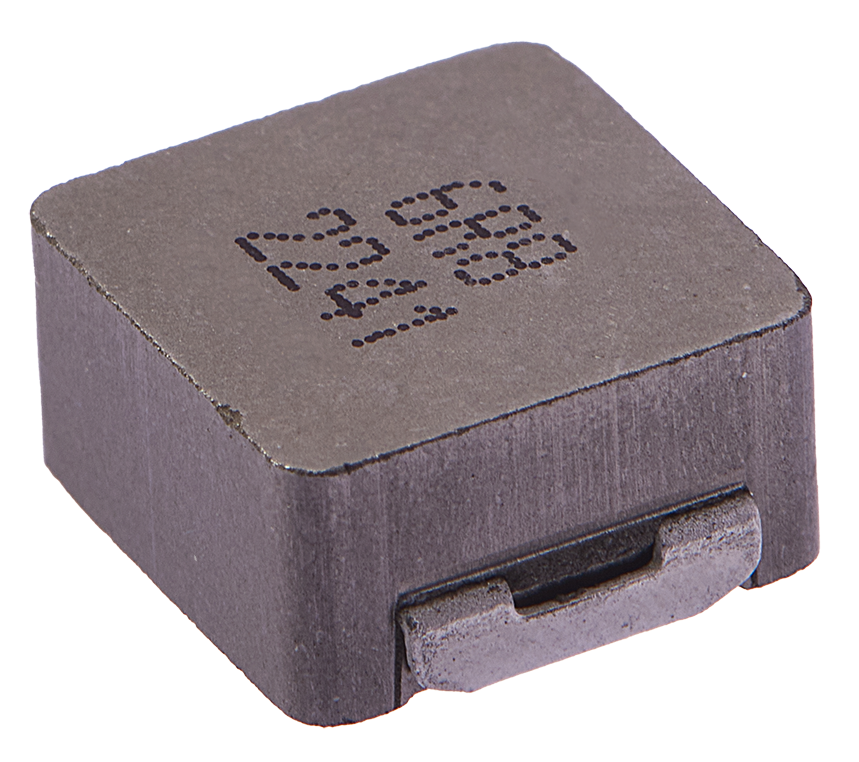

1670378373558576.pngMDA5040HT5.5*5.25*3.80.47~22.02.7~13.53.5~16.35.5~170下载
MDA7054.pngMDA7054HT7.9*7.2*5.21.5~100.01.8~11.52.4~16.46.3~303下载
MDA1054.pngMDA1054HT11.0*10.0*5.10.68~47.04.2~32.04.9~46.01.8~89下载
