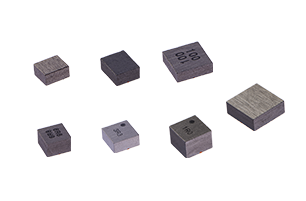

双绕组屏蔽型功率电感
SPM(车用)
FEATURES
•Large current,Low DC-resistance,High efficiency bymagnetic metal powder
•Low acoustic noise and low leakage flux noise by shielded construction
•Operating temperature: -40°C to +125°C
FEATURES
•Large current,Low DC-resistance,High efficiency bymagnetic metal powder
•Low acoustic noise and low leakage flux noise by shielded construction
•Operating temperature: -40°C to +125°C
| 产品图 | 系列号 | 尺寸(mm) | 电感值(μH) | 温升电流(A) | 饱和电流(A) | 直流电阻(Ω) | 文件下载 |
 | SPM1610 | 1.6*1.6*1.0 | 0.33~2.2 | 0.9~1.9 | 2.0~4.2 | 65~337 |  |
 | SPM2010 | 2.0*1.6*1.0 | 0.33~2.2 | 1.1~2.5 | 1.9~4.5 | 40~225 | |
 | SPM2506 | 2.5*2.0*0.65 | 0.47~2.2 | 0.8~1.6 | 2.1~4.9 | 76~328 | |
| SPM2508 | 2.5*2.0*0.8 | 0.47~4.7 | 0.75~2.0 | 1.7~5.8 | 70~450 | |
| SPM2510 | 2.5*2.0*1.0 | 0.33~10.0 | 0.6~3.4 | 1.4~6.9 | 29~733 | |
 | SPM2512 | 2.5*2.0*1.2 | 0.47~10.0 | 0.7~3.4 | 1.5~6.7 | 30~680 | |
 | SPM3006 | 3.0*3.0*0.6 | 2.2~4.7 | 0.69~1.1 | 1.7~2.1 | 266~621 | |
 | SPM3010 | 3.0*3.0*1.0 | 1.0~10.0 | 0.7~2.5 | 1.6~4.4 | 43~589 | |
 | SPM3012 | 3.0*3.0*1.2 | 0.33~6.8 | 0.8~3.4 | 2.4~11.1 | 19~368.2 | |
| SPM3015 | 3.0*3.0*1.5 | 0.47~47.0 | 0.39~3.7 | 1.17~6.0 | 20~2090 | |
 | SPM3020 | 3.0*3.0*2.0 | 0.33~10.0 | 1.2~5.5 | 2.0~6.8 | 14~280 | |
 | SPM4020 | 4.1*4.1*2.1 | 0.22~10.0 | 1.8~9.0 | 2.7~13.1 | 5.5~161 | |
 | SPM4030 | 4.1*4.1*3.1 | 1.0~10.0 | 2.4~7.0 | 3.5~7.4 | 12~100 | |
 | SPM5020 | 5.4*5.4*2.1 | 0.82~4.7 | 4.1~8.8 | 5.5~11 | 8.3~54.8 | |
 | SPM5030 | 5.4*5.4*3.1 | 1.0~8.2 | 3.9~8.7 | 4.0~7.9 | 10~58.2 | |
