首 页 > 合金一体成型电感宽焊盘 > > MDHA(车用)

合金一体成型电感宽焊盘

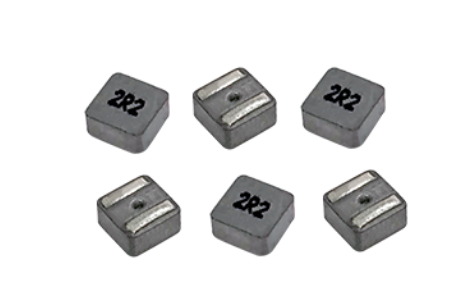

MDHA(车用)

FEATURES

•Flat wire coil for low copper losses

•Composite core material allows high saturation currents

•Very low acoustic noise and very low leakage flux noise.High current capability and handles high transient current spikes

•AEC-Q200 qualified

•Operating temperature:-55°C to +155°C


APPLICATION

•DC/DC converters for entertainment/navigation systems.Noise suppression for motors: windshield wipers/power seats/power mirrors/heating and ventilation blowers/HID lighting

•LED drivers

MDHA
产品清单
产品图系列号尺寸(mm)

电感值(μH)

温升电流(A)

饱和电流(A)

直流电阻(mΩ)文件下载
1676274159201332.pngMDHA40204.1*4.1*1.90.47~3.35.5~13.25.3~14.06.8~38.3
1670378373558576.pngMDHA50205.5*5.3*1.90.15~1.58.8~18.813.3~30.04.6~18.7
1670378373558576.pngMDHA50305.5*5.3*2.90.15~4.75.9~22.28.2~36.02.31~36.3
1670378373558576.pngMDHA70306.6*6.4*2.90.18~4.58.0~32.010.0~40.01.6~23.0
1670378373558576.pngMDHA70606.6*6.4*5.84.7~22.05.0~11.05.6~10.513.1~55.0
1670378373558576.pngMDHA80307.8*7.6*2.90.6~8.25.9~23.010.2~36.03.2~48.73
1676274159201332.pngMDHA101011.9*11.0*9.71.0~15.013.8~40.015.5~50.01.2~19.3
