信号线共模

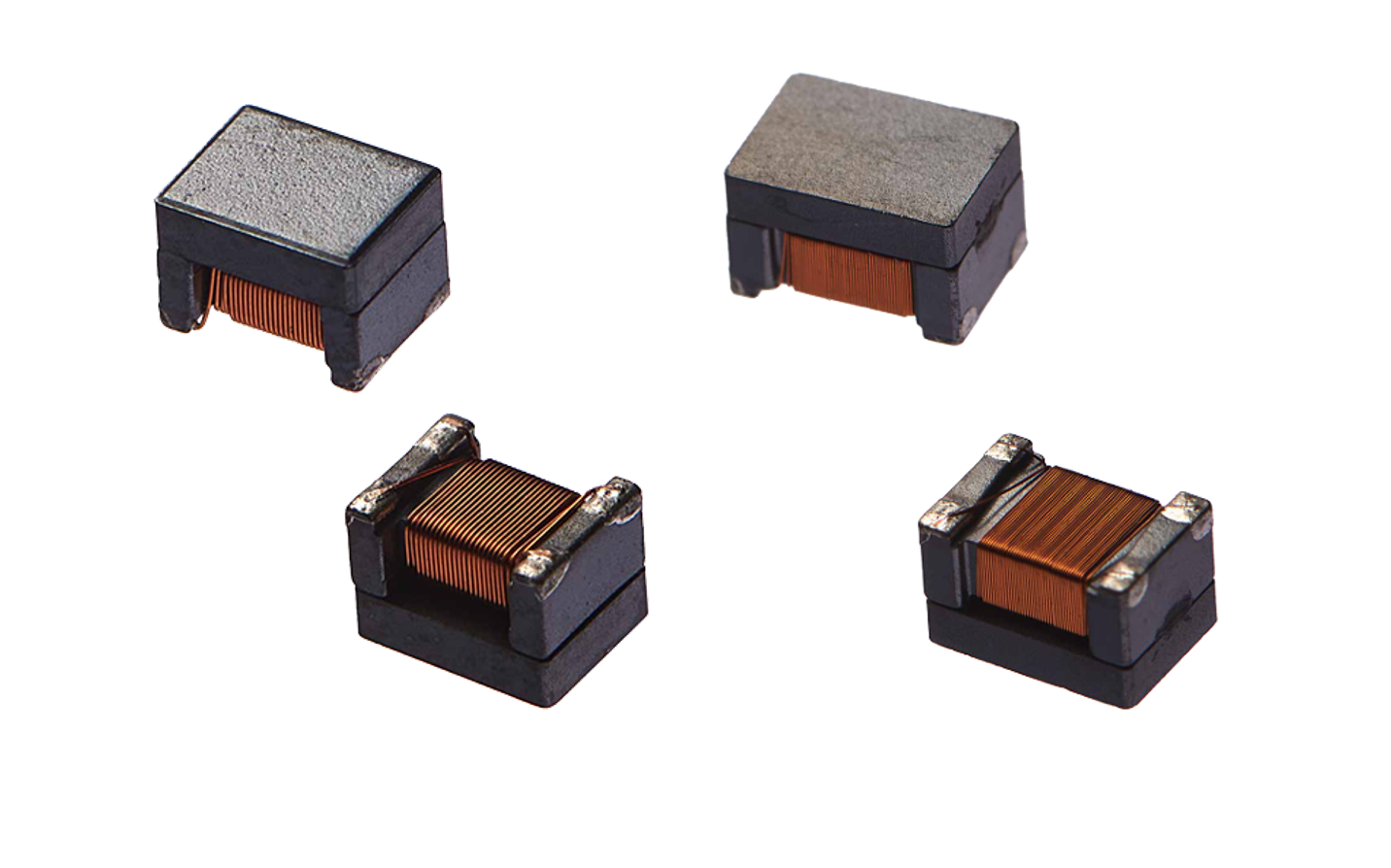

ACMA(车用)
FEATURES
•Compact products, whose characteristics areequivalent to that of conventional products
•Common mode filters for Signal Line
•Operating temperature:-55°C to +150°C
•AEC-Q200 qualified
APPLICATION
•CAN-BUS, FlexRay system
FEATURES
•Compact products, whose characteristics areequivalent to that of conventional products
•Common mode filters for Signal Line
•Operating temperature:-55°C to +150°C
•AEC-Q200 qualified
APPLICATION
•CAN-BUS, FlexRay system
ACMA3225-C02 ACMA3225-C02
| 产品图 | 系列号 | 尺寸(mm) | 电感值(μH) | 温升电流(mA) | 直流电阻(Ω) | 文件下载 |
 | ACMA3225POC | 3.2*2.5*2.3 | 2.2~47 | 300~880 | 0.19~0.90 |  |
| ACMA3225POT | 3.2*2.5*2.3 | 4.7~10 | 1300~1500 | 0.1~0.15 | |
 | ACMA3225-C02 | 3.2*2.5*2.4 | 51~100 | 150~200 | 1.5~2.2 | |
 | ACMA3225 | 3.3*2.5*2.5 | 11~200 | 70~300 | 0.4~5.5 |  |
| ACMA3225ETH | 3.3*2.5*2.5 | 100~200 | 70~150 | 1.5~5.5 | |
 | ACMA4532ETH | 4.5*3.2*2.8 | 200 | 100 | 4.5 | |
 | ACMA4532 | 4.7*3.2*2.8 | 11~100 | 200~360 | 0.6~2.0 | |
