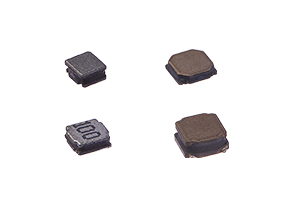

磁胶电感
NRSM(一般用)
FEATURES
•Operating temperature: -40 °C to +125 °C
FEATURES
•Operating temperature: -40 °C to +125 °C
| 产品图 | 系列号 | 尺寸(mm) | 电感值(μH) | 温升电流(A) | 饱和电流(A) | 直流电阻(mΩ) | 文件下载 |
 | NRSM201610S | 2.0*1.6*1.08 | 0.24~15.0 | 0.42~3.45 | 0.75~5.5 | 33~1300 |  |
 | NRSM252010S | 2.5*2.0*1.05 | 0.24~10.0 | 0.75~4.5 | 1.0~7.1 | 25~630 | |
| NRSM252012S | 2.5*2.0*1.26 | 0.24~10.0 | 1.0~4.7 | 1.35~7.8 | 19~435 | |
 | NRSM3012S | 3.0*3.0*1.2 | 0.22~22.0 | 0.46~4.8 | 1.15~10.0 | 20~96 | |
 | NRSM3015S | 3.0*3.0*1.55 | 0.22~15.0 | 1.2~5.9 | 1.75~11.0 | 15.4~460 | |
| NRSM3020S | 3.0*3.0*2.2 | 0.24~3.3 | 3.0~7.1 | 5.5~14.5 | 16~98 | |
 | NRSM4012S | 4.0*4.0*1.2 | 0.47~22.0 | 0.9~4.3 | 1.25~8.2 | 33~650 | |
 | NRSM4020S | 4*0*4.0*2.0 | 0.24~47.0 | 0.66~7.0 | 1.3~17.0 | 13~950 | |
