首 页 > 磁胶电感 > > NRSA(车用)

磁胶电感

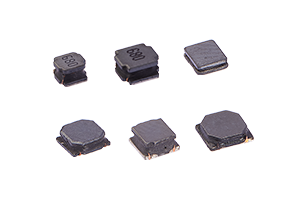

NRSA(车用)

FEATURES

•Magnetic shield type wound inductor for power circuits using a ferrite magnetic material

•High magnetic shield construction and compatible with high-density mounting

•Larger current and lower Rdc were achieved by optimizing the ferrite core figure

•Operating temperature: –55°C to +125°C

•AEC-Q200 qualified


APPLICATION

•Car navigation,car stereo and car accessories only

NRSA
产品清单


产品图系列号尺寸(mm)

电感值(μH)

温升电流(A)

饱和电流(A)

直流电阻(mΩ)文件下载
image.pngNRSA2016102.1*1.7*1.050.47~22.000.30~2.160.38~2.7041~1550下载
1690944615040.jpgNRSA2520B2.5*2.0*1.250.24~47.000.29~3.500.30~4.0528~2000下载
image.pngNRSA3012B3.0*3.0*1.01.00~3.30
1.70~2.80
1.60~3.60
43~115
下载
image.pngNRSA30153.0*3.0*1.30.24~100.000.35~4.500.30~5.50
13~3400
下载
image.pngNRSA3015B3.0*3.0*1.30.47~1.80
1.70~3.70
1.30~4.30
22~172
下载
image.pngNRSA4014B4.0*4.0*1.351.00~4.70
1.50~2.20
1.20~2.80
45~108
下载
1690943547913049.pngNRSA4018B4.0*4.0*1.81.00~22.00
0.75~3.50
0.80~4.50
32~450
下载
NRSA4030.pngNRSA40304.0*4.0*3.00.68~47.000.72~4.600.95~6.8010~445下载
NRSA5020.pngNRSA50205.0*5.0*1.81.00~47.000.70~4.100.70~5.0020~460下载
NRSA5040.pngNRSA50404.95*4.95*(3.8~3.9)1.00~100.000.72~5.000.75~7.5012~560下载
1672881501707728.pngNRSA60206.0*6.0*1.81.00~22.001.40~4.501.30~6.2019~204下载
NRSA6028.pngNRSA60286.0*6.0*2.61.00~100.00
0.80~5.75
0.72~5.20
10~605
下载
NRSA6045.pngNRSA60456.0*6.0*4.20.47~220.000.60~8.600.88~17.006.8~900下载
NRSA8040.pngNRSA80408.0*8.0*(3.7~4.2)1.00~220.000.90~8.500.99~13.808.2~610下载
