首 页 > 双绕组屏蔽型功率电感 > > SDDA(车用)

双绕组屏蔽型功率电感

SDDA(车用)

FEATURES

•Ferrite drum core construction,Magnetically shielded

•Dual winding inductors that can be used as a single inductor, SEPIC,Flyback, or other coupled inductor/transformer

•AEC-Q200 qualified

•Moisture Sensitivity Level 1

•Operating temperature range: -55°C to +155°C


APPLICATION

•Headlamps, tail lamps and interior lighting

•HVAC

•Doors, window lift and seat control

•Audio subsystem

•Digital instrument cluster

•In-Vehicle Infotainment and navigation

SDDA
产品清单
产品图系列号尺寸(mm)

电感值(μH)

温升电流(A)

饱和电流(A)

直流电阻(Ω)文件下载

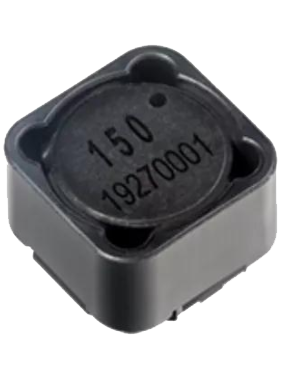

1714023219406627.pngSDDA128012.5*12.5*8.00.47~10000.61~14..61.14~56.05.5~1992下载
2222.pngSDDA121012.5*12.5*10.53.9~33.03.1~7.06.2~17.618~75下载
