首 页 > 信号线和电源线共模 > > BCMA(车用)

信号线和电源线共模

BCMA(车用)

FEATURES

•Impedance variation: Extensive lineup areavailable for compatibility with various usages

•Common mode filters for Signal Line and Power Line

•AEC-Q200 qualified

•Operating temperature range:-40°C to +125°C


APPLICATION

•Measures against common mode noise in power lines

•Headlamps, tail lamps and interior lighting

•HVAC

•Doors, window lift and seat control

•Audio subsystem

•Digital instrument cluster

•In-Vehicle Infotainment and navigation

BCMA
产品清单



 BCMA3216

产品图系列号尺寸(mm)阻抗(Ω)温升电流(A)直流电阻(mΩ)文件下载
BCMA2012.pngBCMA12101.2*1.0*0.9900.2400

下载

BCMA2012.pngBCMA20122.0*1.2*1.267~10000.1~0.4250~1300下载
389c0579d2221a426b443f306eff2f5.pngBCMA32163.2*1.8*1.690~22000.2~0.37
300~1200
下载
BCMA3225.pngBCMA32253.2*2.5*2.290~10000.4~1.050~300下载
BCMA4532.pngBCMA45324.5*3.2*2.890~6002.5~4.050~60下载
1693273662834901.pngBCMA45205.0*4.5*2.390~14001.9~3.235~81下载
BCMA5020.pngBCMA50205.0*4.8*2.5
100~15001.5~6.013~56
下载

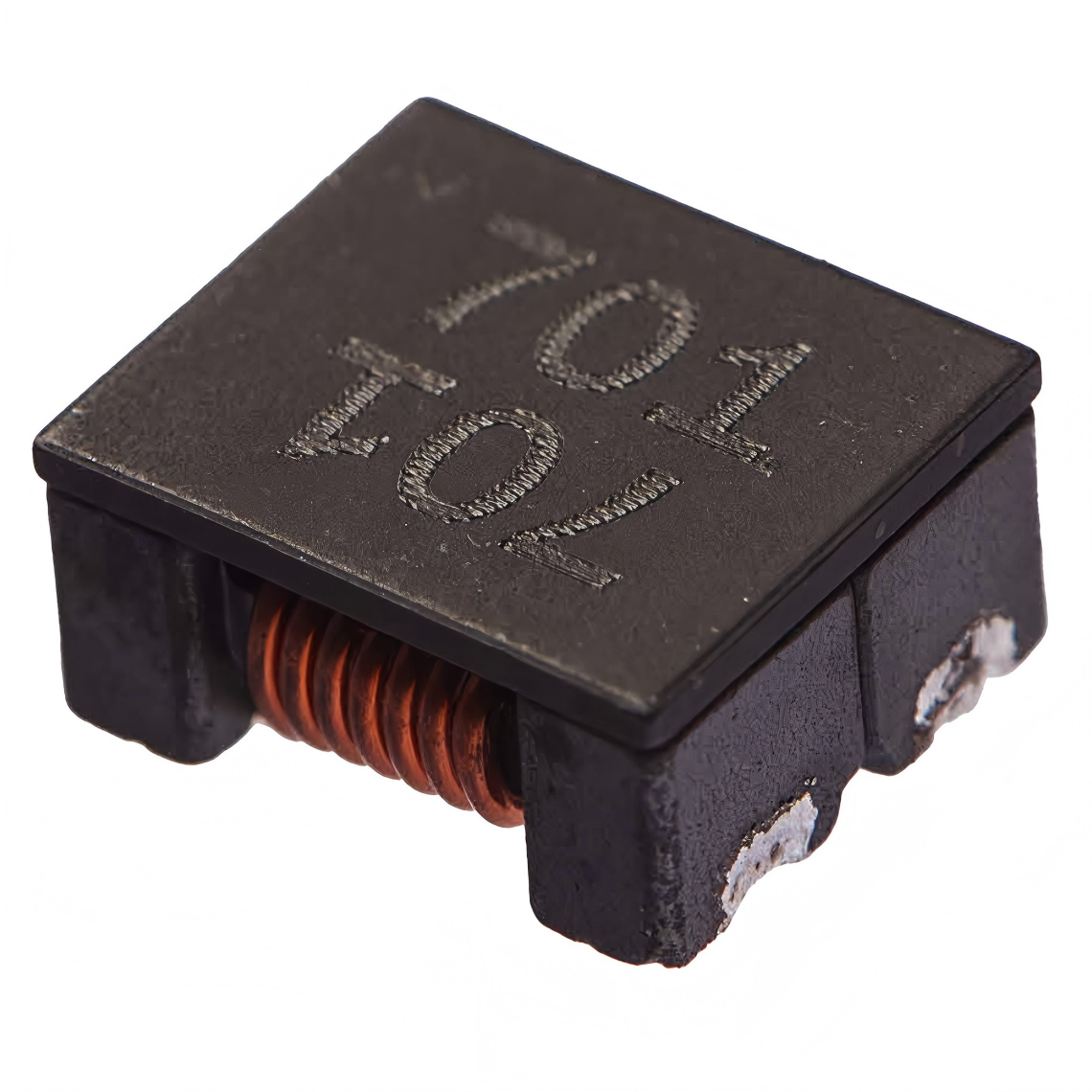

BCMA7060.pngBCMA70607.5*6.0*3.870~30000.9~155~75下载
image.pngBCMA92509.2*6.0*5.0-0.8~1.60.08~0.207下载
1675749970409280.pngBCMA10099.0*8.0*5.3500~130000.35~5.0010~720下载
1685945040633803.pngBCMA90409.5*5.6*5.2-0.2~0.5120~700下载
BCMA9070.pngBCMA90709.5*7.0*4.8300~40001.8~6.06~100下载
BCMA9030-01.pngBCMA90309.4*7.2*2.6-4.1~5.59~12下载
BCMA1211.pngBCMA121112.5*10.8*6.4300~27001.5~9.04.0~50下载
BCMA1513.pngBCMA1513HT15.6*13.0*6.6300~15005~154~23下载
